18V 100W Flexible Solar Panels 300W Waterproof Monocrystalline Solar Panel Camping RV Home Charge 12V
18V 100W Flexible Solar Panels 300W Waterproof Monocrystalline Solar Panel Camping RV Home Charge 12V
Flexible solar panels are increasingly being used in various settings including homes, RVs, boats, trucks, and trailers. Most homeowners are now using solar panels in attempts to reduce electricity costs. Others enjoy the convenience of having to power their electrical items when roaming around.
●Powerful panel with higher-than-average efficiency
At around 23%, this solar panel is more efficient than many average devices on the market. In addition, it comes with an integrated blocking diode, which helps prevent reverse current drain, especially at night. This ensures optimum efficiency levels.
●Frameless panel for easy operation
Owing to its 0.1inch thickness and weighing just 4.45 pounds,this 100w flexble solar panel boasts a unique frameless design.You can be fixed onto the desired surface by glue, tape, grommet, or Velcro.This design ensures easy installation.Six metal-reinforced mounting holes for fixing screws,hanging and removing the panel while allowing easy transportation.
●Durable Panel made from PET material

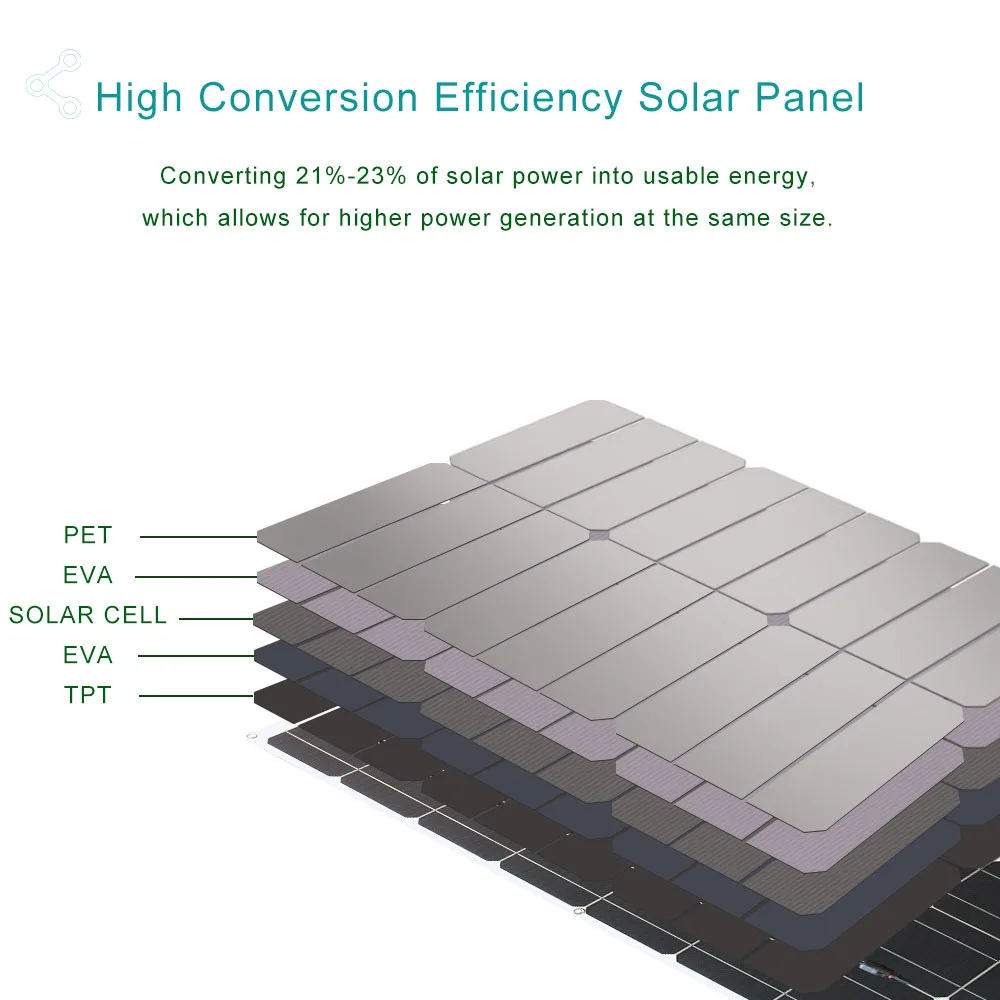

Speaking of the construction, the panel features a special PET film, which has high-temperature resistance, anti-fouling, while still being easy to clean. The durability of this solar panel is remarkable too, thanks to its water-resistant body.
●Flexible panel for installation anywhere
As you would expect with flexible solar panels, the 100w flexible solar panel is bendable to a maximum of 20 degrees, thus encouraging mounting on curved surfaces. In fact, the body is such sturdy and flexible that it can be used on tight spaces or crowded areas that are usually out of bounds for conventional glass and aluminum panels.
100W Solar panel
Maximum power(Pmax) 100W
Maximum system voltage 700V DC
Open circuit voltage(Voc) 19.2V
Short circuit current(Isc) 6.87A
Maximum power voltage(Vmp) 16V
Maximum power current(Imp) 6.25A
Number of cells 32pcs
Weight 1.8KG
Size 750*540*3 mm
Operating temperature(NOCT) 45 plus or minus 2 Celsius system
STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5
Application Scenario
High efficiency
High efficiency single crystal solar panel, conversion of solar panel is protected to 21%
Bypass diodes minimize shadow power loss and provide excellent performance in dark environments
Super lightweight
Thanks to advanced polymer materials, the product weighs 70% lighter than traditional solar panels, making it much easier to transport and install, making it easier to carry, transport and install.
Ultra-thin
You will hardly notice that it is thin. The solar panels are flat because they are only 1/10 inch high. The panels are about 95% thinner than their rigid panels, making them ideal for stealth solar equipment that fits perfectly on the roofs of yachts and caravans.
It is easy to install and can be installed with glue, glue, screws and corner guards (for fixing and mounting screws).
Rounded corners prevent scratches

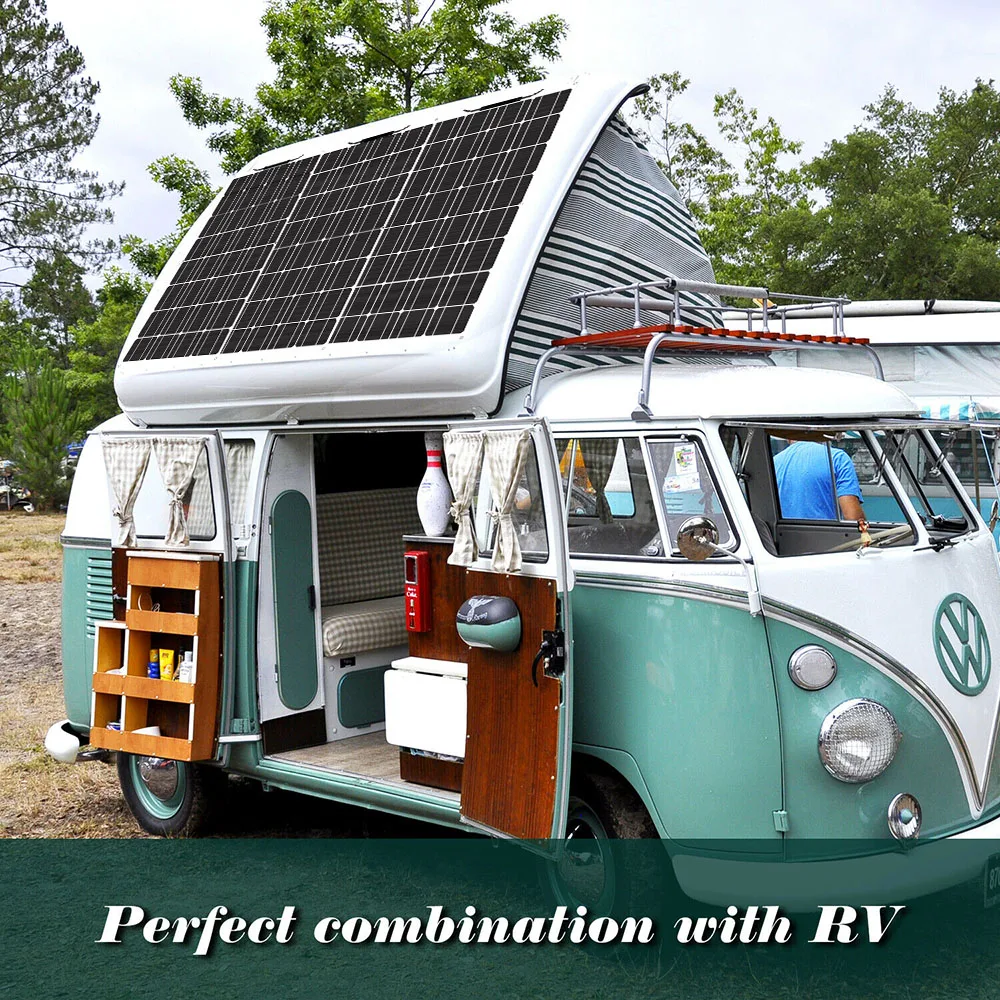

Widely used applications: golf carts, yachts, ships, caravans, electric cars, tourist cars, police cars, roofs, camping, rooftop power generatio

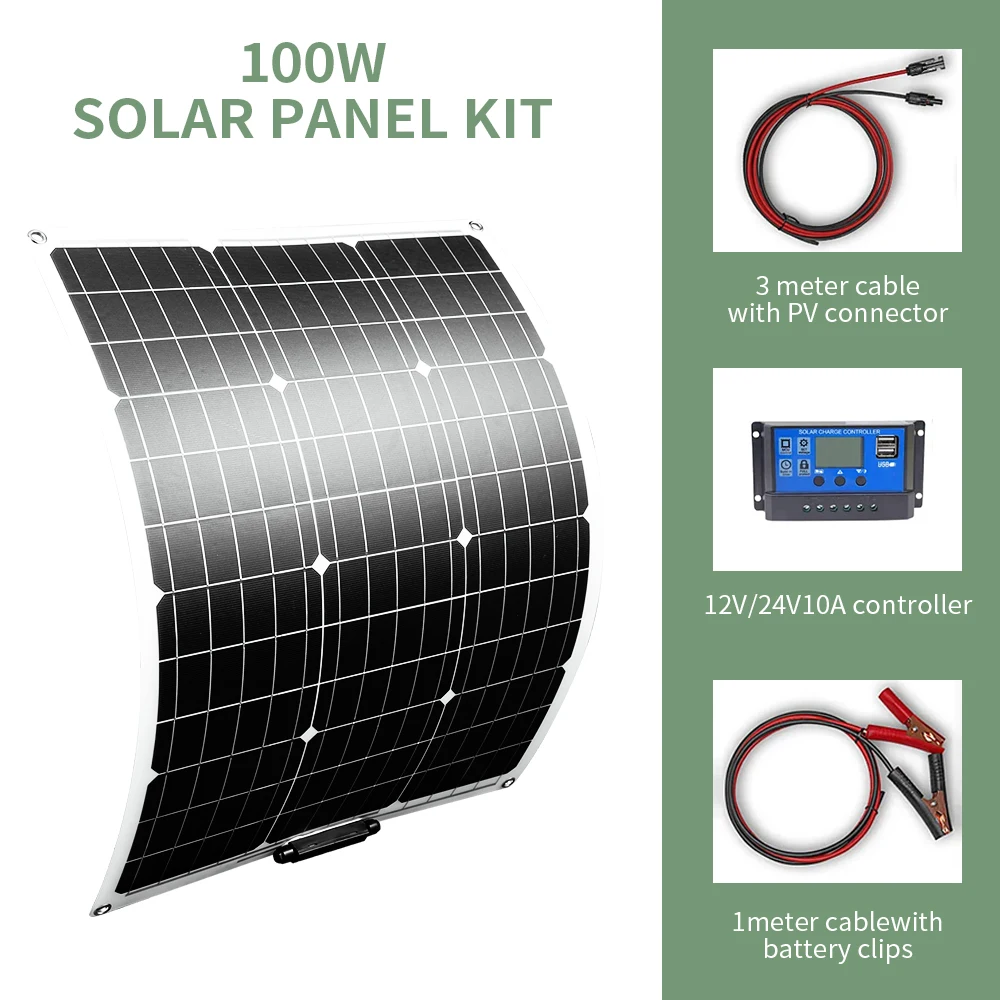

100W Solar Kit Package List
▶100W 18V solar panel *1
▶10A 12V/24V solar charger regulator *1
▶3 meter extend cables *1
▶1 meter cable with alligator clips *1

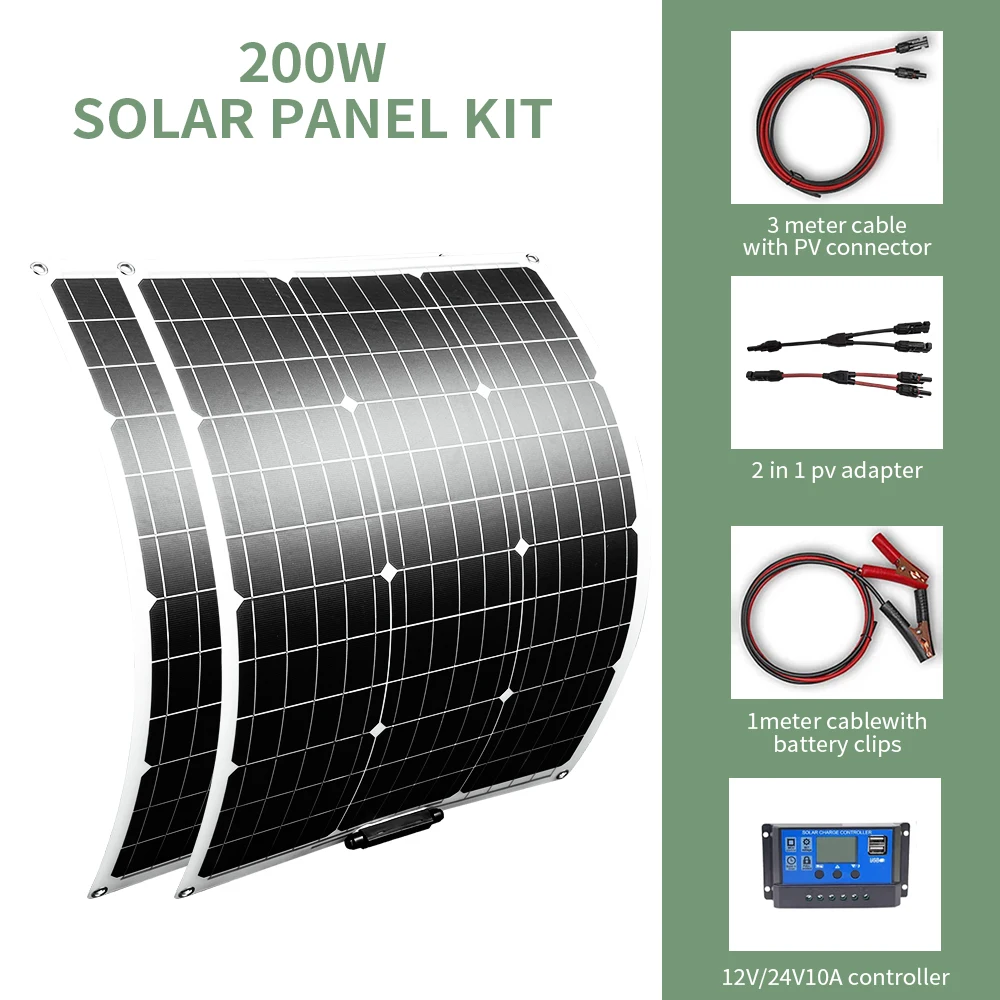

200W Solar Kit Package List
▶100W 18V solar panel *2
▶20A 12V/24V solar charger regulator *1
▶3 meter extend cable *1
▶1 meter cable with alligator clips *1
▶2-in-1 PV parallel adapter *1
